Carrum Downs has substantial fabrication, laser cutting, machinery and equipment-building activity. Welded frames and thermally cut components can release residual stress during final machining if the manufacturing sequence is poorly controlled.
Alpha Detroit provides stress relieving for Carrum Downs businesses from its Moorabbin heat-treatment facilities. The service is suited to fabrications, laser-cut plate and machinery frames when the material, geometry and required performance support the selected process.
Stress Relieving Furnace Capacity
| Specification | Published Capability |
| Furnace type | Natural-gas-fired bogie hearth furnace |
| Maximum furnace envelope | 3,800 mm long x 1,400 mm wide x 1,500 mm high |
| Maximum lifting capacity | 20 tonnes |
| Temperature control | Four independently controlled variable-speed burners |
| Published applications | Weldments, fabrications, roughed-out dies, flats, rounds, castings, extruded or rolled stock, and flame- or laser-cut plate |
| Cycle and tolerance | Set from alloy, section thickness, fabrication history and drawing requirements; nominate critical dimensions before treatment |
Why Residual Stress Matters
Welding, thermal cutting, forming, casting and heavy machining can leave residual stress locked into a component. Material may then move during finish machining or service, making flatness, alignment and dimensional control difficult.
Stress relieving uses a controlled thermal cycle to reduce these stresses before the next manufacturing stage. The cycle depends on alloy, section thickness, fabrication history and the properties that must be retained; it should never be selected from component size alone.
Stress Relieving Applications for Carrum Downs
- Welded machine bases and frames
- Flame- or laser-cut profiles and plates
- Fabricated tooling and roughed-out dies
- Castings or heavy sections scheduled for finish machining

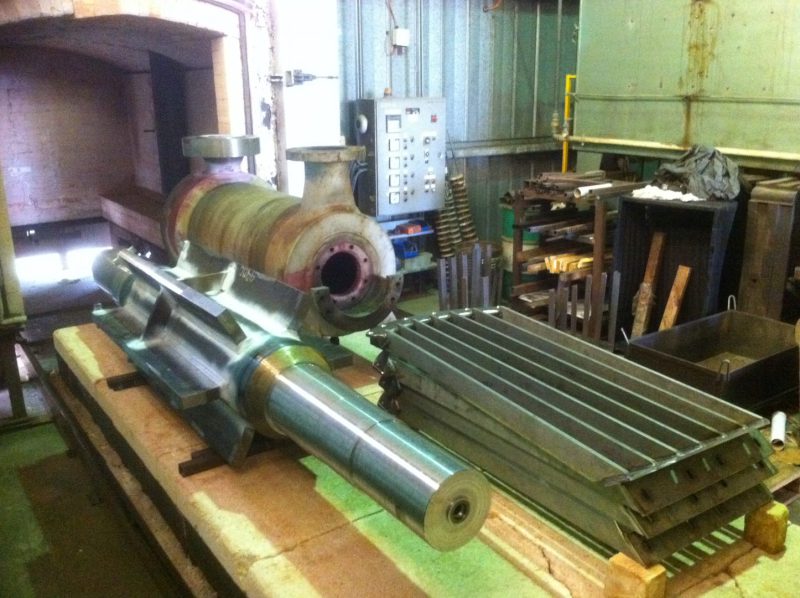

Large Fabrications and Dimensional Planning
Alpha Detroit’s bogie hearth furnace accepts suitable components up to 3,800 mm long, 1,400 mm wide and 1,500 mm high, with lifting capacity to 20 tonnes. Four independently controlled variable-speed burners maintain a uniform processing environment.
Stress relieving is not a promise that a distorted fabrication will become straight. Datum strategy, support, machining sequence and stock allowance remain important. Identify critical flatness, alignment and dimensional requirements before the cycle is agreed.
Information Required for Assessment
- Material grade and fabrication or casting history
- Overall dimensions, weight and lifting points
- Weld details, section thicknesses and thermal-cutting history
- Current manufacturing stage and subsequent machining plan
- Critical dimensions, flatness and alignment requirements
- Applicable procedure, standard and reporting requirements
Servicing Carrum Downs from Moorabbin
Alpha Detroit receives Carrum Downs work at its Moorabbin facility. Large fabrications require confirmed overall dimensions, weight, lifting points and transport clearances before delivery is booked.
This page describes an area served. Alpha Detroit does not claim a physical workshop or branch in Carrum Downs. All quotes should identify the Moorabbin processing address and the actual customer delivery arrangement.
Request a Technical Assessment
Send the fabrication drawing, material grade, section thicknesses, weight and machining plan for a stress-relieving assessment.
