Rowville supports toolmakers, production engineers, machinery businesses and suppliers to the wider Knox industrial area. Nitriding is relevant where suitable alloy-steel tooling, gears or sliding components require a hard case with limited post-treatment finishing.
Alpha Detroit provides gas nitriding for Rowville businesses from its Moorabbin heat-treatment facilities. The service is suited to tooling, gears and wear-critical machine components when the material, geometry and required performance support the selected process.
Gas Nitriding Furnace Capacity
| Specification | Published Capability |
| Nitriding furnaces | Two |
| Maximum component diameter | 850 mm |
| Maximum furnace depth | 1,980 mm |
| Atmosphere | Controlled gas atmosphere |
| Published process stage | Diffusion cycle designed to manage detrimental conventional white-layer effects |
| Case depth and tolerance | Drawing-specific; nominate steel condition, hardness profile, compound-layer requirement, effective case depth and test locations |
Gas nitriding introduces nitrogen into the surface of a suitable ferrous alloy to develop a hard case and supporting diffusion zone. It is used for components requiring resistance to wear, galling or fatigue without the rapid quench used in many conventional hardening routes.
Nitriding is not distortion-free and it is not suitable for every steel. Alloy selection, prior hardening and tempering, residual stress, surface condition and component support can all influence dimensional stability and case formation.
Gas Nitriding Applications for Rowville

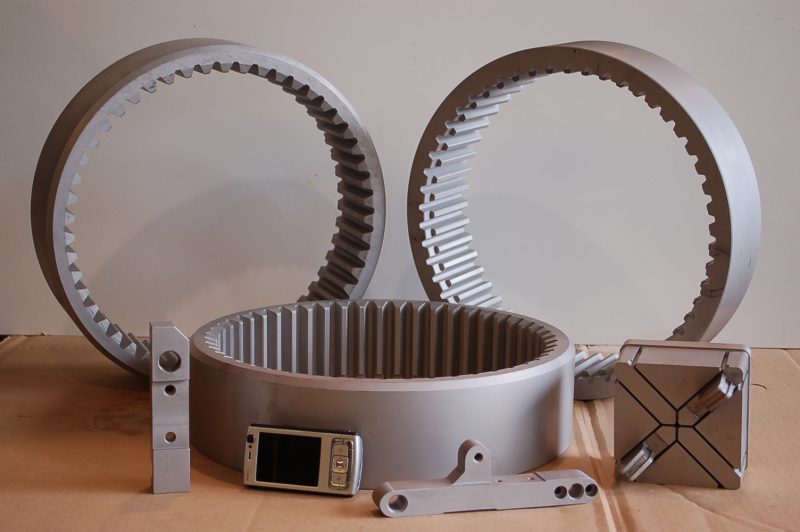

- Forming and cutting tools
- Gears and shafts made from suitable nitriding steels
- Mould and die components
- Sliding or rotating parts exposed to wear and galling
Compound Layer, Case Depth and Tolerance
Alpha Detroit’s published process uses a controlled gas atmosphere incorporating a diffusion cycle designed to manage detrimental conventional white-layer effects. The acceptable compound layer and diffusion-zone profile still depend on the application.
State surface hardness, effective case depth, compound-layer requirement, masking zones and test locations on the drawing. Critical dimensions and any post-treatment polishing allowance must be nominated before processing.
Information Required for Assessment
- Steel grade, starting hardness and previous heat treatment
- Drawing, diameter, length and batch quantity
- Surface-hardness and effective case-depth requirements
- Compound-layer or white-layer limit
- Masking zones and surfaces that must remain untreated
- Critical tolerances, finishing allowance and test method
Servicing Rowville from Moorabbin
Processing occurs at Alpha Detroit’s Moorabbin site. Parts should arrive clean, identified and free from unapproved coatings; confirm any masking and post-treatment polishing requirements before dispatch.
This page describes an area served. Alpha Detroit does not claim a physical workshop or branch in Rowville. All quotes should identify the Moorabbin processing address and the actual customer delivery arrangement.
Request a Technical Assessment
Send the drawing, steel grade, starting hardness, case-depth requirement and compound-layer limit for a gas-nitriding assessment.
